Dell Pro Thunderbolt 4 Smart Dock SD25TB4
- HDMI 2.1 port
Connect to a TV, external display, or another HDMI-in enabled device. Provides video and audio output.
- Two DisplayPort 1.4 ports
Connect an external display or a projector.
- USB 3.2 Gen 2 (10 Gbps) Type-C port with DisplayPort 1.4 Alt Mode (Multi-Function Display Port or MFDP)
Connect devices such as external storage devices, printers, and external displays. The dock provides a data transfer speed of up to 10 Gbps.
- Two Thunderbolt 4 ports
Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display.
When connecting a Macbook - USB-c to DP cable adapter is required and should be connected to the Thunderbolt port 94), not the DP(3)
- Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.
- RJ45 ethernet port
Connect an ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000/2500 Mbps.
- Power-adapter port
Connect a power adapter to provide power to your docking station.
- USB 3.2 Gen 2 (10 Gbps) port
Connect devices such as external storage devices and printers. Provides a data transfer speed of up to 10 Gbps.
https://www.dell.com/support/kbdoc/en-us/000124312/dell-thunderbolt-dock-wd19tb-and-apple-usb-c-hosts
DELL 24" USB-C HUB MONITOR P2425HE
Ports and slots

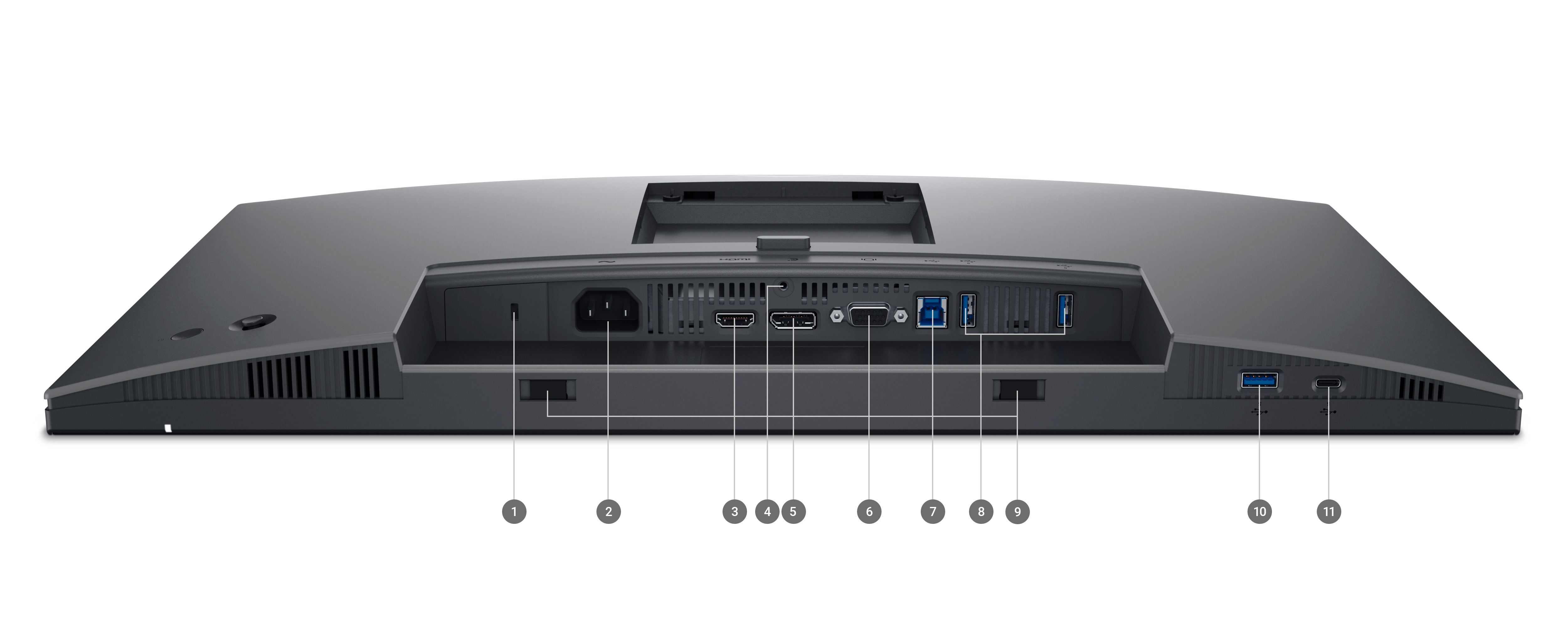

Bottom and rear view
1. Security lock slot (based on Kensington Security Slot)
2. Power connector
3. HDMI (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz TMDS as per specified in HDMI 1.4)
4. Stand lock
5. DisplayPort 1.2 (HDCP 1.4)
6. VGA
7. USB 3.2 Gen1 Type-B upstream
8. USB 3.2 Gen1 Type-A downstream ports (2)
9. Soundbar slots (2)
10. USB 3.2 Gen1 Type-A downstream
11. USB 3.2 Gen1 Type-C downstream (PD of up to 15W)
Cables Included
1. Power cord
2. DP–to–DP, 1.8m
3. USB 3.2 Gen1 Type A-to-B upstream, 1.8m
